This product is a PC terminal block with a specification of 10A, voltage of 160V, pitch of 3.81mm, 10 positions, screw connection, soldering, conductor/PCB connection direction of 55°, and green color.

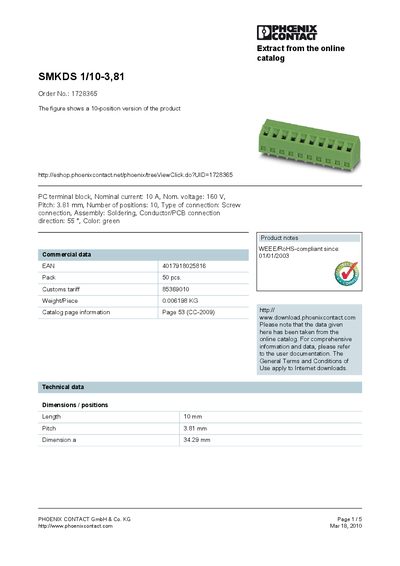

The SMKDS 1/10-3,81 is a 10‑position screw‑connection terminal block designed for 10 A nominal current and 160 V nominal voltage. It features a 3.81 mm pitch and can be assembled by soldering with a 55° conductor direction.
The handbook lists detailed specifications such as dimensions, weight, tightening torque, and approved certifications (CB, CCA, CSA, CUL, GOST, SEV, UL). It also includes accessory part numbers, tools, and drawing references for installation and labeling.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 10 |
| Length | 10 mm |
| Weight per piece | 0.006198 kg |
| Certifications | CB, CCA, CSA, CUL, GOST, SEV, UL |
The SMKDS 1/10-3,81 is rated for a nominal current of 10 A.
It has 10 positions.
The pitch is 3.81 mm.
It is certified by CB, CCA, CSA, CUL, GOST, SEV, and UL.
