DFK-PC 5/ 6-G-7,62 is a connector from PHOENIX CONTACT with a nominal current of 41A, a nominal voltage of 500V, a pitch of 7.62mm, a green color and a soldering assembly method.
The DFK-PC 5/6-G-7,62 is a 7.62 mm pitch, green‑colored, 6‑position connector designed for a nominal current of 41 A and a nominal voltage of 500 V. It complies with EN‑VDE standards and features an insulating material of PA with UL‑94 V0 flammability rating.

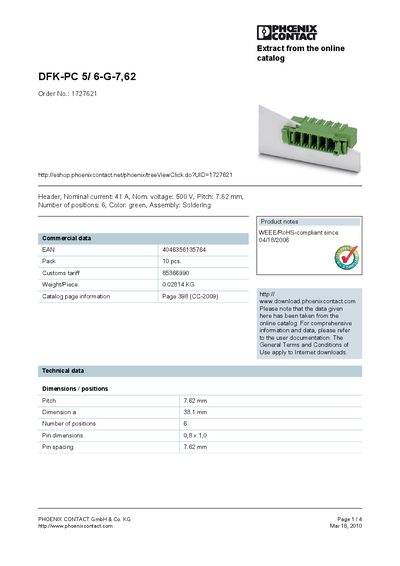

The leaflet lists detailed technical data, including dimensions, pin spacing, weight, and packaging (10 pcs per pack). It also provides ordering information, the EAN code, and compliance notes such as WEEE/RoHS status. Contact details for Phoenix Contact are included for further inquiries.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 6 |
| Color | Green |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 800 V |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Weight per piece | 0.02814 kg |
| EAN | 4046356135764 |
The nominal current is 41 A.
The pitch is 7.62 mm.
It has 6 positions.
Each connector weighs 0.02814 kg.
