This document introduces the SMKDSN 1.5/2-5.08 PC terminal block produced by PHOENIX CONTACT GmbH & Co. KG. The product has a rated current of 13.5A, a rated voltage of 250V, a screw connection, and soldering assembly. It is suitable for connecting wires and PCBs. The product is compliant with WEEE/RoHS standards.
The SMKDSN 1,5/2-5,08 is a screw‑connection terminal block with a 5.08 mm pitch. It is available in a 10‑position version and a 2‑position version, rated for a nominal current of 13.5 A and a nominal voltage of 250 V. The block measures 12 mm in length, weighs 0.002401 kg per piece, and is supplied in packs of 50.

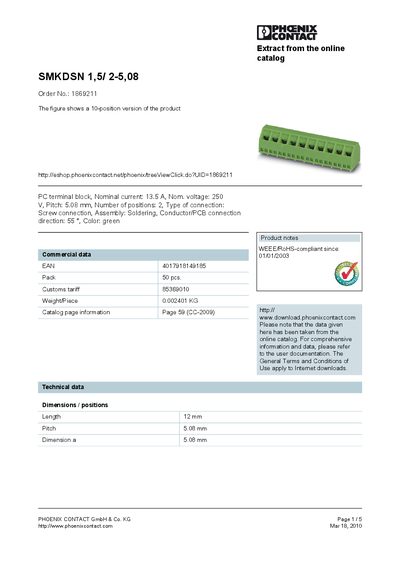

The leaflet provides ordering details (Order No. 1869211), accessories such as marker pens and cards, and lists certifications (CB, CCA, CSA, CUL, GOST, SEV, UL). It also notes WEEE/RoHS compliance since 01/01/2003 and includes contact information for Phoenix Contact in Germany.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 (10‑position version shown) |
| Length | 12 mm |
| Weight per piece | 0.002401 kg |
| EAN | 4017918149185 |
| Certifications | CB, CCA, CSA, CUL, GOST, SEV, UL |
| WEEE/RoHS compliance | Since 01/01/2003 |
The terminal block is rated for a nominal current of 13.5 A.
The pitch of the block is 5.08 mm.
It carries certifications CB, CCA, CSA, CUL, GOST, SEV and UL.
The order number is 1869211.
