ICV 2,5/ 3-G-5,08 is a product with a nominal current of 12A, a rated voltage of 320V, a pitch of 5.08mm, 3 positions, a green color, and a soldering assembly method.
The ICV 2,5/3-G-5,08 is a 3‑position green terminal block with a 5.08 mm pitch, designed for soldering installation. It is rated for a nominal current of 12 A and a nominal voltage of 320 V.

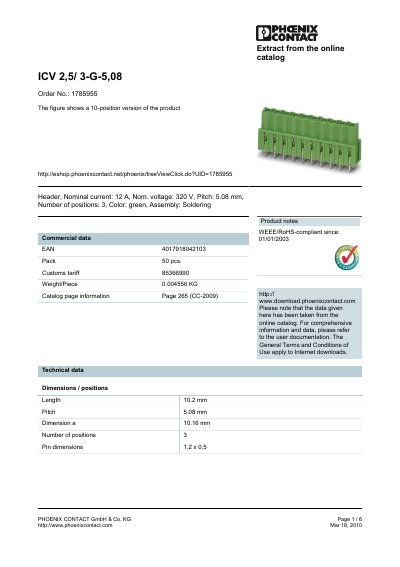

The leaflet lists technical data such as dimensions, weight (0.004556 kg per piece), insulating material group I, surge voltage ratings of 4 kV, and certifications including CB, CSA, CUL, GOST, UL, and VDE‑PZI. Accessories and drawing information are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.004556 kg |
| Insulating material group | I |
| Rated surge voltage | 4 kV |
| Certificates | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The nominal current rating is 12 A.
The terminal block has a pitch of 5.08 mm.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
Each piece weighs 0.004556 kg.
