This document describes the features and characteristics of the product FK-MCP 1,5/ 6-STF-3,81 from PHOENIX CONTACT GmbH & Co. KG, including plug component, nominal current and voltage, connection type, and color.
The FK-MCP 1.5/6-STF-3.81 is a green‑colored plug component terminal block with a 3.81 mm pitch, six positions, a nominal current of 8 A and a nominal voltage of 160 V. Technical data include rated surge voltage of 2.5 kV, EN‑VDE approval, and an aluminum insulating material.

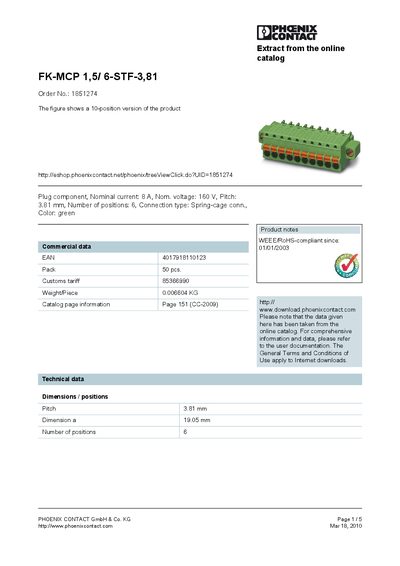

The handbook lists ordering information, related accessories, certification marks (CSA, CUL, UL, VDE‑PZI) and confirms RoHS compliance since 01/01/2003. It is intended for engineers and purchasers needing detailed product specifications and part numbers.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 6 |
| Color | green |
| RoHS compliance | Since 01/01/2003 |
The nominal current rating is 8 A.
It has six positions.
The pitch is 3.81 mm.
Yes, it has been RoHS compliant since 01/01/2003.
