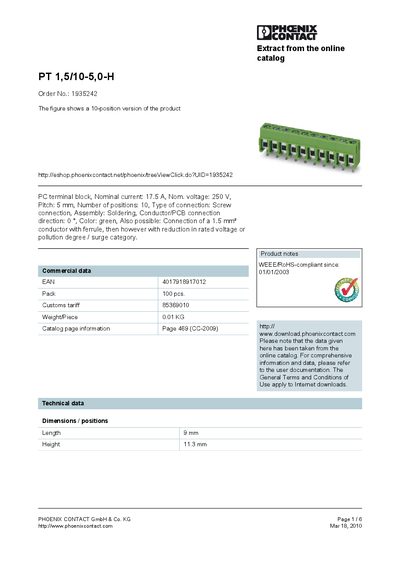

This document describes the features and characteristics of the PC terminal block product PT 1,5/10-5,0-H from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, connection type, color, etc.
The Phoenix Contact PT 1,5/10-5,0-H is a 10‑position terminal block with a 5 mm pitch, designed for screw connection and optional soldering. It supports a nominal current of 17.5 A and a nominal voltage of 250 V, with a compact size of 9 mm length and 11.3 mm height.
The sheet provides detailed technical data, including conductor cross‑section ranges, tightening torque values, surge voltage ratings, and certification information (CUL, UL, CCA). Accessories such as marker cards and screwdrivers are listed, along with a dimensioned drawing and derating diagram.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 10 |
| Length | 9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.01 kg |
| EAN | 4017918917012 |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 17.5 A.
The pitch of the terminal block is 5 mm.
It has 10 positions.
It is certified according to CUL, UL and CCA standards.
