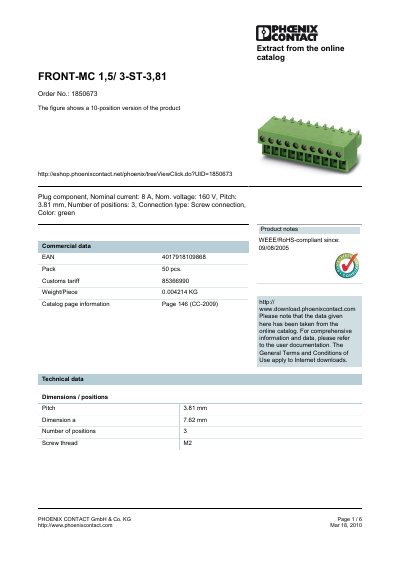

FRONT-MC 1,5/ 3-ST-3,81 is a plug component produced by PHOENIX CONTACT. It has a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.81 mm, a screw connection and a green color.
The FRONT-MC 1,5/3-ST-3,81 is a 3‑position screw‑connection terminal block with a 3.81 mm pitch. It is rated for 8 A nominal current and 160 V nominal voltage, and is suitable for 1.5 mm² conductor cross‑section. Technical data include tightening torque (0.22‑0.25 Nm), insulating material PA, and UL‑94 V0 flammability rating.
The product complies with multiple certifications (CB, CSA, CUL, UL, VDE‑PZI) and is RoHS‑compliant. Accessories such as marker pens, marker cards, and compatible headers are listed, and the datasheet also provides dimensions, weight (0.004214 kg per piece), and EAN code for ordering.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 3 |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Rated surge voltage | 2.5 kV |
| Tightening torque (min) | 0.22 Nm |
| Tightening torque (max) | 0.25 Nm |
| Weight per piece | 0.004214 kg |
| EAN | 4017918109868 |
The terminal block is rated for a nominal current of 8 A.
The pitch of the FRONT-MC 1,5/3-ST-3,81 is 3.81 mm.
It is certified by CB, CSA, CUL, UL, and VDE‑PZI.
The recommended tightening torque ranges from 0.22 Nm to 0.25 Nm.
