This product is a 6-position header with a nominal current of 41A, a rated voltage of 500V, a pitch of 7.62mm, and a green color. It can be installed by soldering.

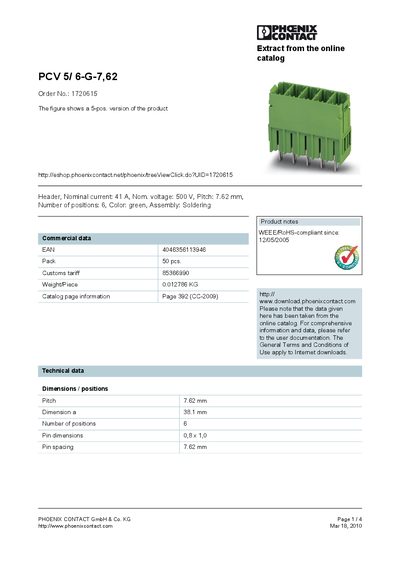

The PCV 5/6-G-7,62 is a 6‑position, green‑colored connector with a 7.62 mm pitch, designed for soldered assembly. It is rated for a nominal current of 41 A and a nominal voltage of 500 V. The connector is supplied in packs of 50 pieces, each weighing 0.012786 kg.
Technical specifications cover dimensions (38.1 mm overall, pin size 0.8 × 1.0 mm), surge voltage ratings (up to 6 kV), and compliance with UL and CUL certifications. The data sheet also provides a drilling plan, solder pad geometry, and contact information for Phoenix Contact.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 6 |
| Color | green |
| Assembly method | Soldering |
| Weight per piece | 0.012786 kg |
| Pack size | 50 pcs |
| Overall dimension (a) | 38.1 mm |
| Pin dimensions | 0.8 × 1.0 mm |
The connector is rated for a nominal current of 41 A and a nominal voltage of 500 V.
The connector is certified by UL and CUL, both listed with a rating of 300 V / 10 A.
It provides six positions and is supplied in green color.
