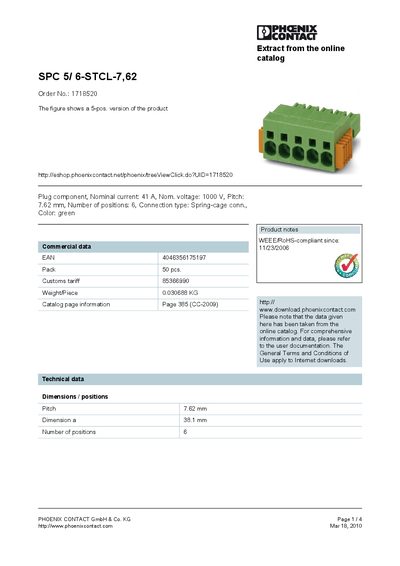

SPC 5/ 6-STCL-7,62 is a connector from PHOENIX CONTACT. It has a nominal current of 41 A, a nominal voltage of 1000 V, a pitch of 7.62 mm, 6 positions, a spring cage connection and is green.
The SPC 5/6-STCL-7,62 is a 6‑position spring‑cage connector with a 7.62 mm pitch, rated for 41 A and 1000 V. It is supplied in a green housing and includes detailed technical data such as conductor cross‑section ranges and derating curves.
The connector complies with UL, CUL and RoHS standards (since 11/23/2006) and is listed in Phoenix Contact’s catalog (page 385, CC‑2009). Ordering information, dimensions and weight are provided for quick reference.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 7.62 mm |
| Number of positions | 6 |
| Connection type | Spring‑cage |
| Color | green |
| Weight per piece | 0.030688 kg |
The connector is rated for a nominal current of 41 A.
It has six positions.
The pitch is 7.62 mm.
Yes, it has been WEEE/RoHS‑compliant since 23 Nov 2006.
