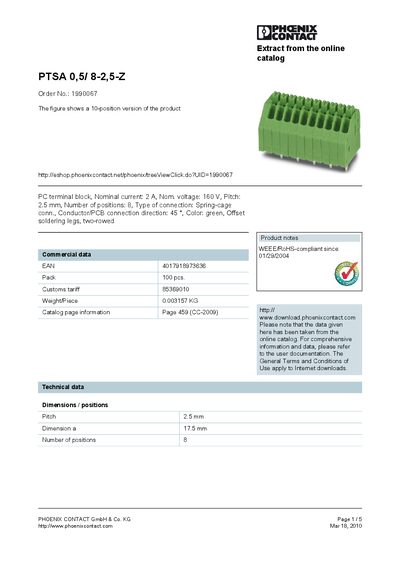

PTSA 0,5/ 8-2,5-Z is a PC terminal block from PHOENIX CONTACT with a nominal current of 2 A, a rated voltage of 160 V, a pitch of 2.5 mm, 8 positions, a spring-cage connection, a 45° conductor/PCB connection direction, a green color, offset soldering legs, and a two-row configuration.
The PTSA 0.5/8-2.5-Z is a spring‑cage terminal block offered by Phoenix Contact. It is designed for a nominal current of 2 A and a nominal voltage of 160 V, with a 2.5 mm pitch and up to eight positions per row.
The leaflet includes detailed technical data, pin dimensions, derating diagrams, certification information and contact details. For full specifications and downloadable files, visit the Phoenix Contact website.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions | 8 |
The terminal block is rated for a nominal current of 2 A.
The pitch between pins is 2.5 mm.
The device provides eight positions per row.
Full documentation can be downloaded from Phoenix Contact’s website at http://www.download.phoenixcontact.com.
