PST 1,3/ 4-5,0 is a 4-way connector produced by PHOENIX CONTACT company. It has a rated current of 12 A, a rated voltage of 250 V, a pin spacing of 5 mm, a black color, and is soldered. It is packed in 50 pieces.
The PST 1,3/4-5,0 is a 4‑position, 5 mm pitch terminal block designed for soldered assembly. It is rated for 12 A nominal current and 250 V nominal voltage, and complies with RoHS and UL standards.

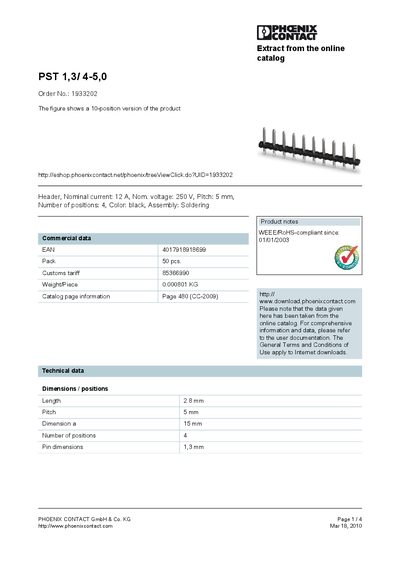

The sheet provides detailed technical data such as dimensions, weight, electrical ratings, certifications, and ordering information, along with diagrams for drilling and solder pad geometry.
| Nominal current | 12 A (depends on the plug used) |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 4 |
| Length | 2.8 mm |
| Dimension a | 15 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.000801 kg |
| EAN | 4017918918699 |
It is rated for 12 A nominal current (depends on the plug used).
The terminal block provides 4 positions.
Length is 2.8 mm, pitch 5 mm, dimension a 15 mm, and pin dimensions 1.3 mm.
