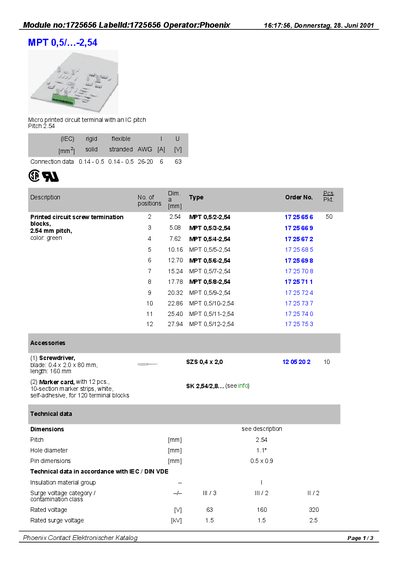

MPT 0.5/...-2.54 Micro printed circuit connector
The MPT 0,5/...-2,54 series are micro printed‑circuit terminal blocks with a 2.54 mm pitch, designed for use on printed circuit boards. Variants are available with 2 to 12 positions and are supplied in a green housing. The catalogue lists accessories such as a screwdriver and a marker card for quick identification of terminals.
The document provides detailed technical data, including pitch, hole diameter, pin dimensions, rated voltage and surge voltage, as well as connection capacity, stripping length, torque values and approval information (UL, CSA). Dimensional drawings and drilling diagrams are included for proper mounting. This manual is written in German.
| Pitch | 2.54 mm |
|---|---|
| Hole diameter | 1.1 mm |
| Pin dimensions | 0.5 × 0.9 mm |
| Rated voltage | 63 V |
| Rated surge voltage | 1.5 kV |
The pitch is 2.54 mm.
The hole diameter is 1.1 mm.
The rated surge voltage is 1.5 kV.
