The document describes the features and characteristics of the PC terminal block produced by PHOENIX CONTACT GmbH & Co. KG, including rated current, rated voltage, and connection type.

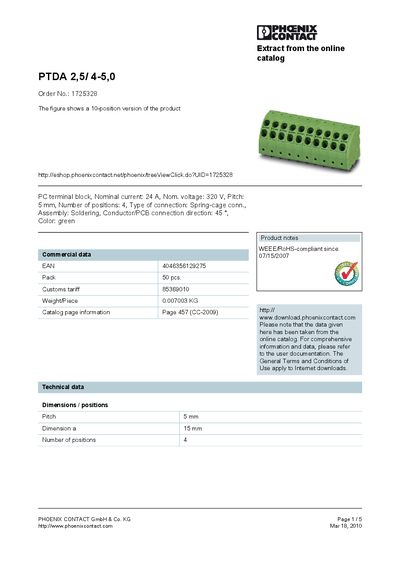

The PTDA 2,5/4-5,0 is a compact terminal block designed for 24 A nominal current and 320 V nominal voltage. It features a 5 mm pitch, spring‑cage connection, and a solder‑on assembly option, making it suitable for PCB mounting.
The datasheet lists detailed technical data such as pin dimensions, surge voltage ratings, weight, packaging, and compliance certifications (CUL, UL). Diagrams illustrate the drilling plan and derating factors for different temperature conditions, and contact information for Phoenix Contact is provided.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5 mm |
| Number of positions | 4 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Color | Green |
The nominal current rating is 24 A.
It has 4 positions.
The terminal block is certified by CUL and UL with a nominal voltage of 300 V and a current rating of 10 A.
The pitch is 5 mm.
