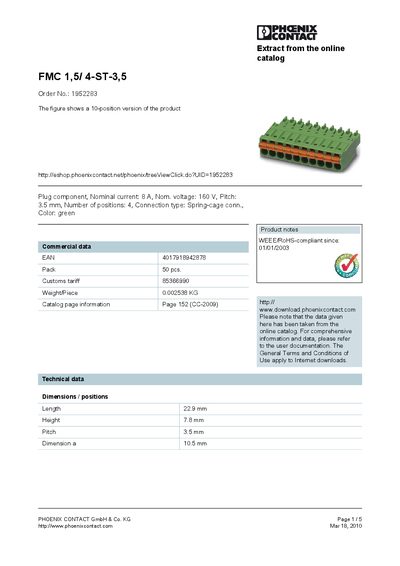

This document provides technical specifications and features of the FMC 1,5/ 4-ST-3,5 plug component from PHOENIX CONTACT GmbH & Co. KG. The product has a rated current of 8A, rated voltage of 160V, 3.5mm pitch, 4 positions, and green color. It is compliant with WEEE/RoHS standards.
The FMC 1.5/4-ST-3.5 is a 4‑position spring‑cage connector designed for 8 A nominal current and 160 V nominal voltage. It is supplied in a green‑coded version and complies with RoHS and WEEE regulations.
The document lists detailed technical specifications such as length, height, pitch, weight, and packaging, as well as certification approvals (CUL, UL) and available accessories like marker pens and labeling cards.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Length | 22.9 mm |
| Height | 7.8 mm |
| Weight per piece | 0.002538 kg |
| EAN | 4017918942878 |
| Packaging | 50 pcs. |
The connector is rated for a nominal current of 8 A.
It has four positions.
The pitch is 3.5 mm.
