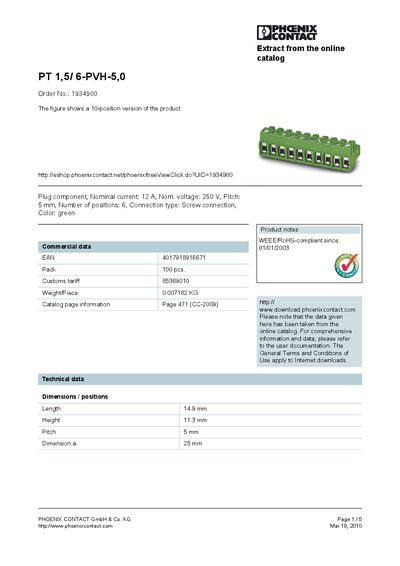

This document is the data sheet for PT 1,5/ 6-PVH-5,0 product, introduces product features, such as rated current, rated voltage, connection type, color and so on.
The PT 1,5/6-PVH-5,0 is a 6‑position screw‑connection terminal block from Phoenix Contact. It is rated for 12 A nominal current and 250 V nominal voltage, with a 5 mm pitch and a green housing.
The sheet provides detailed dimensions, mechanical data, tightening torque values, material specifications and certification information, as well as ordering and packaging details.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Length | 14.9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.007182 kg |
| EAN | 4017918916671 |
The terminal block is rated for a nominal current of 12 A.
The pitch is 5 mm.
It has six positions.
The minimum tightening torque is 0.35 Nm and the maximum is 0.4 Nm.
