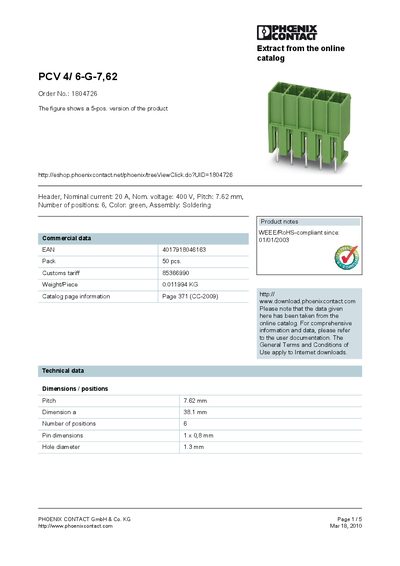

This is a product description from PHOENIX CONTACT. The product model is PCV 4/ 6-G-7,62. It is a 6-pin connector with a rated current of 20A and a rated voltage of 400V. The installation method is soldering.
The PCV 4/6-G-7,62 is a 6‑position green terminal block with a 7.62 mm pitch, designed for soldering or screw connections. It is rated for a nominal current of 20 A and a nominal voltage of 400 V, with a weight of 0.011994 kg per piece.
The sheet lists detailed technical data, including surge voltage ratings (up to 6 kV), various certifications (BV, CSA, CUL, DNV, GL, GOST, LR, RS, UL), and a range of accessories such as marker cards, plug adapters and mounting flanges. A drilling plan and solder pad geometry are also provided.
| Nominal current | 20 A |
|---|---|
| Pitch | 7.62 mm |
| Number of positions | 6 |
| Color | green |
| Weight per piece | 0.011994 kg |
| Certifications | BV, CSA, CUL, DNV, GL, GOST, LR, RS, UL |
The nominal current is 20 A.
The terminal block has a 7.62 mm pitch.
It is certified by BV, CSA, CUL, DNV, GL, GOST, LR, RS and UL.
