SPTA 1/ 8-3,5 is a 8-position, 3.5 mm pitch terminal block produced by PHOENIX CONTACT. Its rated current is 9 A and its rated voltage is 160 V.

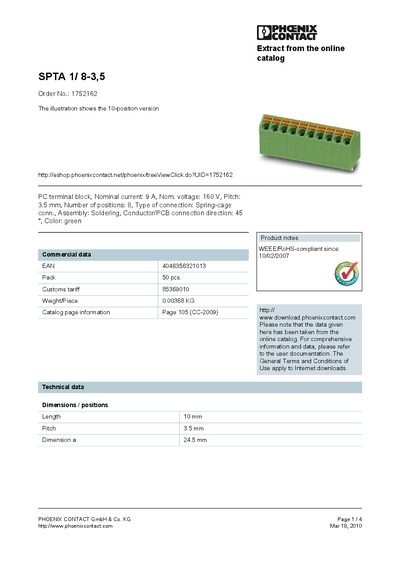

The SPTA 1/8-3.5 is a spring‑cage terminal block with a 3.5 mm pitch and eight positions. It is designed for solder‑type assembly and is supplied in a green housing. The sheet provides commercial data, technical specifications, and certification information.
Key information includes nominal current and voltage ratings, dimensional drawings, and approved certifications (CUL, UL). Contact details for Phoenix Contact and compliance notes (WEEE/RoHS) are also listed.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 8 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Color | green |
| Weight per piece | 0.00368 kg |
| EAN | 4046356321013 |
| WEEE/RoHS compliance date | 10/02/2007 |
The nominal current rating is 9 A.
It has eight positions.
The pitch is 3.5 mm.
It is certified by CUL and UL.
