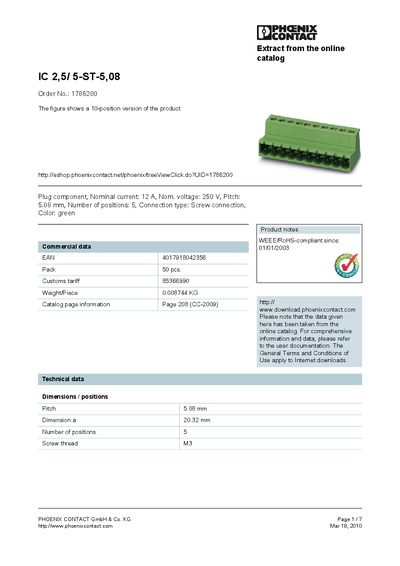

This document describes the IC 2,5/ 5-ST-5,08 product from PHOENIX CONTACT GmbH & Co. KG. The product is a plug component with a nominal current of 12A, nominal voltage of 250V, pitch of 5.08mm, 5 positions, and a screw connection. It is green in color and compliant with WEEE/RoHS standards.
The IC 2,5/5-ST-5,08 is a green‑colored plug component with a 5.08 mm pitch, designed for DIN‑rail mounting and available with screw or spring‑cage connections. It is rated for 12 A nominal current and 250 V nominal voltage (320 V for certain variants) and is RoHS‑compliant.
The sheet lists detailed technical data, certification approvals (CSA, CUL, UL, VDE‑PZI), accessories, and drawing diagrams. Contact information for Phoenix Contact GmbH & Co. KG is provided at the end of the document.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.008744 KG |
| EAN | 4017918042356 |
The nominal current is 12 A.
The pitch is 5.08 mm.
The plug has 5 positions.
It uses a screw connection.
