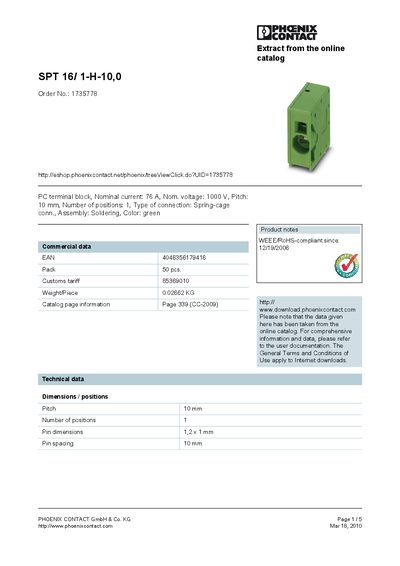

This document is about PHOENIX CONTACT SPT 16/ 1-H-10,0 PC terminal block, Nominal current is 76 A, Nom. voltage is 1000 V, Pitch is 10 mm, Number of positions is 1, Type of connection is Spring-cage conn., Assembly is Soldering, Color is green.
This document provides the technical specifications for the Phoenix Contact SPT 16/1-H-10,0 terminal block. It lists electrical ratings such as nominal current and voltage, mechanical dimensions, and material information.
Additional sections cover certifications (UL, CUL), drawing references, and test standards (DIN EN 60512‑5‑2). Contact and ordering information for Phoenix Contact is also included.
| Nominal current | 76 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 10 mm |
| Number of positions | 1 |
| EAN | 4046356179416 |
| Certifications | UL, CUL |
| Test standard | DIN EN 60512‑5‑2:2003‑01 |
| Reduction factor | 1 |
| AWG/kcmil range | 20‑4 |
The terminal block is rated for a nominal current of 76 A.
It is certified according to UL and CUL standards.
The pitch of the terminal block is 10 mm.
