MSTBV 2,5/10-GF-5,08 is a connector produced by PHOENIX CONTACT company. The rated current is 12A, the rated voltage is 250V, the pitch is 5.08mm, the positioning hole diameter is 1.4mm, the pin dimensions are 1x1mm, the insulating material is PBT, and the maximum load current is 12A.

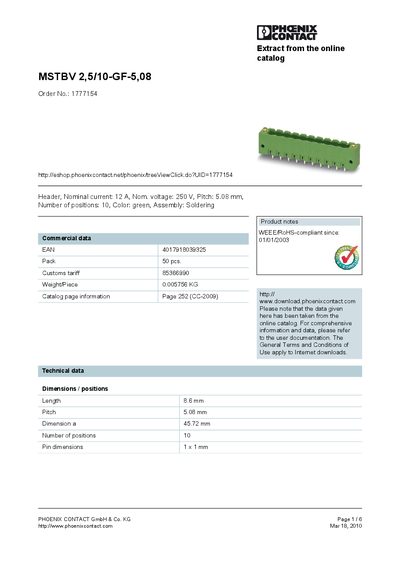

The MSTBV 2,5/10-GF-5,08 is a green‑colored terminal block with a 5.08 mm pitch, ten positions, and a nominal current rating of 12 A at 250 V. Key technical data such as dimensions, weight (0.005756 kg per piece) and compliance information are listed.
The document also provides part numbers for related accessories, additional product variants, and ordering details, along with a wiring diagram and mechanical drawing. Contact information for Phoenix Contact and the product’s EAN (4017918039325) are included for reference.
| Nominal current | 12 A |
|---|---|
| Pitch | 5.08 mm |
| Number of positions | 10 |
| Color | green |
| Weight per piece | 0.005756 kg |
| EAN | 4017918039325 |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 12 A.
The pitch is 5.08 mm.
It has ten positions.
Each piece weighs 0.005756 kg.
