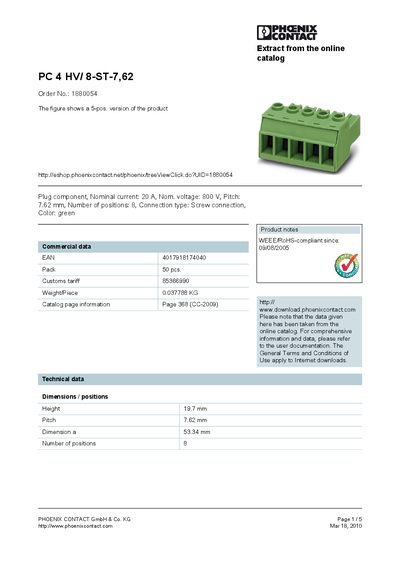

This document describes the features and characteristics of the PC 4 HV/ 8-ST-7,62 plug component produced by PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, connection type, color, etc.
This handbook presents the key technical specifications of the Phoenix Contact PC 4 HV/ 8-ST-7,62 terminal block, including nominal current, voltage, pitch, dimensions and weight. It also lists the approved certifications and provides details on available accessories and tools.
Additional information such as stripping lengths, conductor cross‑section ranges, and derating curves are included for design engineers, while contact details for Phoenix Contact and ordering information are provided at the end of the document.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 800 V |
| Pitch | 7.62 mm |
| Number of positions | 8 |
| Weight per piece | 0.037788 kg |
| Certifications | CSA, CUL, GOST, UL |
The terminal block is rated for a nominal current of 20 A.
The pitch is 7.62 mm.
It has 8 positions.
It is certified to CSA, CUL, GOST and UL standards.
