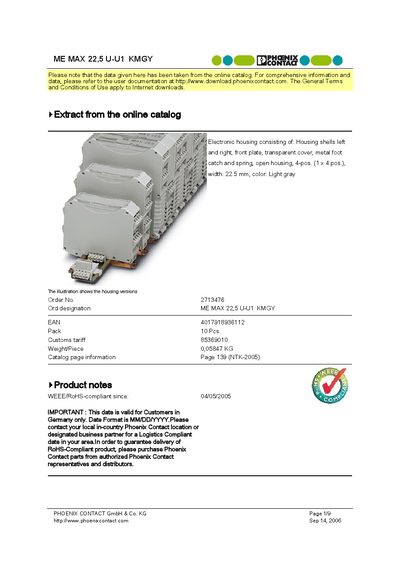

This document describes an electronic housing consisting of housing shells, front plate, transparent cover, metal foot catch and spring, etc. The product has 4 positions, a width of 22.5mm, and a light gray color. This product is WEEE/RoHS compliant.
The ME MAX 22.5 U-U1 KMGY is a light‑gray DIN rail bus connector designed for compact mounting on control panels. It features a PA 6.6 housing, four contact positions and a width of 22.5 mm.
The leaflet lists detailed dimensions, material specifications, inflammability rating, weight, and a range of accessories such as cover caps, label sheets and connector kits. Ordering numbers, EAN code and compliance information are also included.
| Housing material | PA 6.6 |
|---|---|
| Color | Light gray |
| Length | 99 mm |
| Constructional height | 114.5 mm |
| Width | 22.5 mm |
| Number of positions | 4 |
| Weight per piece | 0.05847 kg |
| Order number | 2713476 |
| EAN | 4017918936112 |
The connector is 99 mm long, 114.5 mm high and 22.5 mm wide.
It provides four contact positions.
The housing is made of PA 6.6 polymer.
Accessories include a cover cap for unoccupied terminals, a label sheet for laser printers, and a kit of COMBICON headers and screw connectors.
