PT 1,5/ 4-PVH-3,5 is a connector launched by PHOENIX CONTACT. The connector is green and has a rated current of 8A and rated voltage of 160V. The installation method is screw connection and the product number is 1984031. The packaging specification is 250 pieces/bag.
The PT 1,5/4-PVH-3,5 is a 4‑position screw‑connection terminal block from Phoenix Contact. It is designed for 8 A nominal current and 160 V nominal voltage with a 3.5 mm pitch and is supplied in a green (or black) housing.

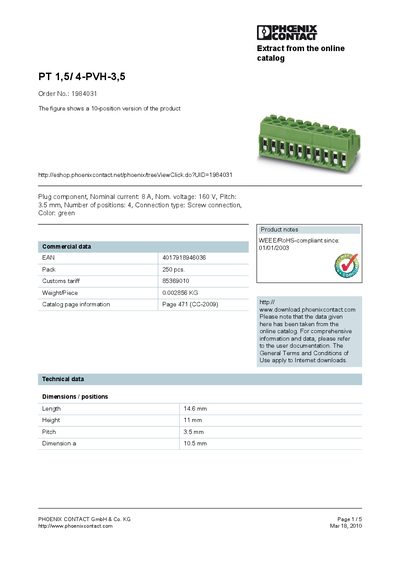

The sheet provides detailed mechanical dimensions, electrical ratings, tightening torque values, and certification information such as CUL, CCA, SEV and UL approvals. Additional accessories and packaging details are also listed.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Length | 14.6 mm |
| Height | 11 mm |
| Weight per piece | 0.002856 kg |
| EAN | 4017918946036 |
| Pack size | 250 pcs |
| Tightening torque (min) | 0.22 Nm |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It uses a 3.5 mm pitch.
The device provides 4 positions.
It is certified according to CUL, CCA, SEV and UL standards.
