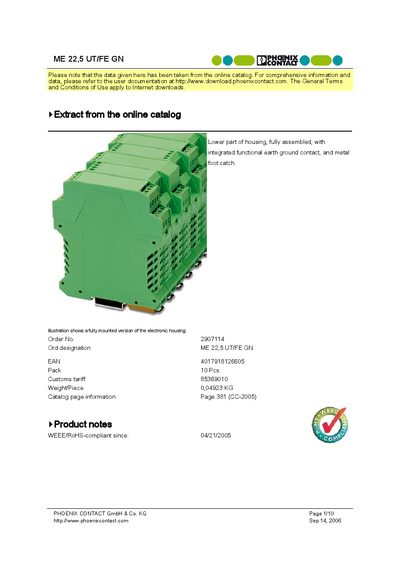

ME 22,5 UT/FE GN is a component housing product of PHOENIX CONTACT. It features a functional earth ground contact and a metal foot catch.
The ME 22.5 UT/FE GN is a green polyamide terminal block with 16 positions, designed for modular installation and equipped with an integrated functional earth‑ground contact. It is intended for use in industrial control panels and can be mounted on a rail or directly on a printed circuit board.
The handbook lists the housing dimensions, electrical ratings, temperature range, and compliance marks (CUL, UL 94 V0, RoHS). It also includes a schematic diagram, part numbers for accessories and additional housing options, and contact information for Phoenix Contact.
| Housing material | Polyamide |
|---|---|
| Color | green |
| Length | 99 mm |
| Width | 22.5 mm |
| Number of positions | 16 |
| Ambient temperature (operation) | -40 °C … 105 °C |
| Nominal voltage | 300 V |
| Nominal current | 10 A |
| AWG/kcmil | 30‑12 |
The nominal voltage is 300 V.
It provides 16 positions.
The housing is made of polyamide.
