MC 1.5/ 4-ST-3.5 is a connector produced by Phoenix Contact. It has a rated current of 8 A, a rated voltage of 160 V, a pitch of 3.5 mm, can connect 4 positions, and is connected by a screw.

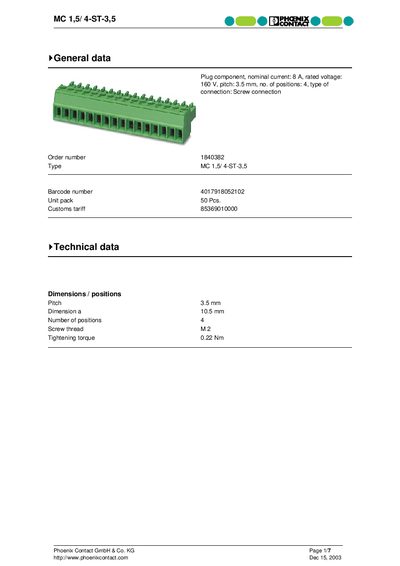

This handbook describes the MC 1,5/4-ST-3,5 terminal block, including its general data such as nominal current (8 A), rated voltage (160 V), pitch (3.5 mm) and screw‑connection type. Technical specifications cover dimensions, torque requirements, and material certifications.
Additional sections list compatible accessories, related product variants, and contact information for Phoenix Contact. Drawings and certification details (UL, CSA) are also included for reference.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Dimension a | 10.5 mm |
| Order number | 1840382 |
| Unit pack | 50 pcs |
The nominal current is 8 A.
The pitch is 3.5 mm.
It has 4 positions.
A tightening torque of 0.22 Nm is required.
