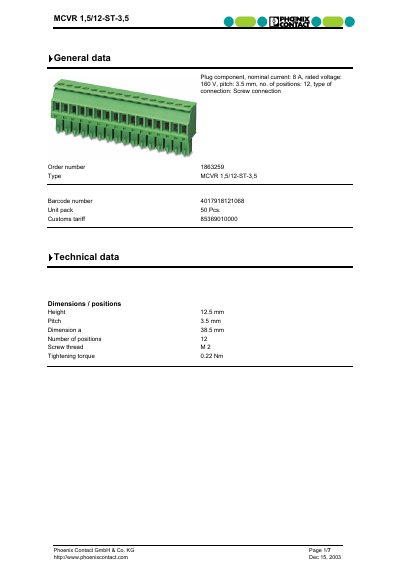

MCVR 1,5/12-ST-3,5 is a connector from Phoenix Contact with a nominal current of 8 A, a rated voltage of 160 V, a pitch of 3.5 mm and 12 positions. The connection type is a screw connection.
The MCVR 1,5/12-ST-3,5 is a screw‑connection plug component with 12 positions, a 3.5 mm pitch and a nominal current of 8 A. It is designed for use with 1.5 mm² conductors and complies with EN‑VDE standards.
The document provides detailed technical specifications, certification information, mechanical drawings, and a list of compatible accessories such as marker pens and screwdriver tools. Contact information for Phoenix Contact GmbH & Co. KG is included on the final page.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 12 |
| Height | 12.5 mm |
| Overall length (dimension a) | 38.5 mm |
| Tightening torque | 0.22 Nm |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
The nominal current is 8 A.
It has 12 positions.
A tightening torque of 0.22 Nm is specified.
The pitch is 3.5 mm.
