This product is a MCDN 1,5/ 3-G1-3,5 P26THR type connector with an 8A rated current and a 160V rated voltage. The pin spacing is 3.5mm, there are 3 pins and the color is black.

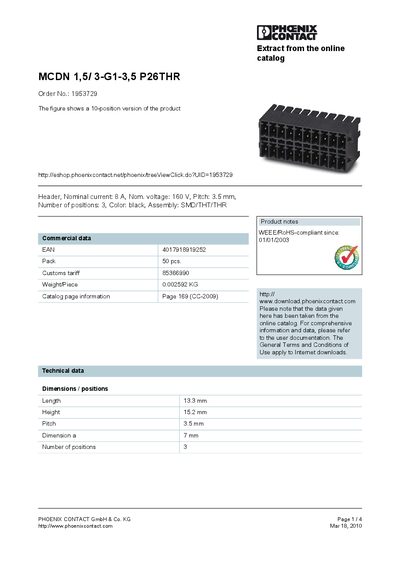

This handbook provides the key technical specifications for the Phoenix Contact MCDN 1.5/3‑G1‑3.5 P26THR terminal block. It lists nominal current and voltage ratings, physical dimensions, pitch, and weight, as well as commercial data such as EAN and packaging.
Additional sections describe the product’s certifications, available accessories like marker cards and plug adapters, and include drilling plans and solder pad geometry. Contact information for Phoenix Contact Germany is provided at the end of the document.
| Nominal current | 8 A per position |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Length | 13.3 mm |
| Height | 15.2 mm |
| Weight per piece | 0.002592 kg |
| EAN | 4017918919252 |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A per position.
It has three positions.
The block measures 13.3 mm in length, 15.2 mm in height, with a pitch of 3.5 mm.
