PT 1,5/ 4-5,0-V is a PC terminal block from PHOENIX CONTACT. It has a rated current of 17.5 A, a rated voltage of 250 V, and a pitch of 5 mm. It can connect 4 conductors.
The PT 1,5/4-5,0-V is a 5 mm pitch, 4‑position screw‑connection terminal block designed for 17.5 A nominal current and 250 V nominal voltage. It can be mounted by soldering and is suitable for 1.5 mm² conductors with or without ferrules.

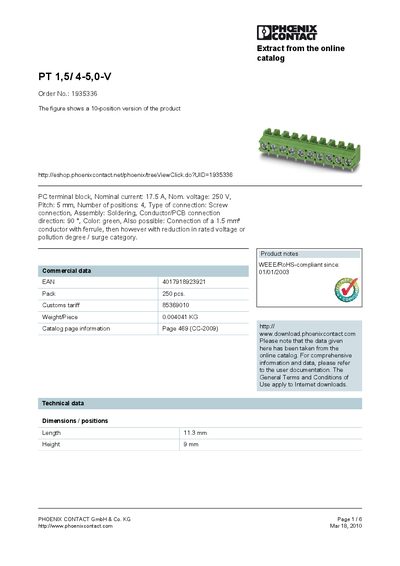

The handbook lists detailed dimensions, electrical ratings, surge voltage limits, and approved accessories such as marker cards and screwdrivers. Certification information (CUL, UL, CCA) and a drilling plan for PCB integration are also included.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 4 |
| Length | 11.3 mm |
| Height | 9 mm |
The terminal block is rated for a nominal current of 17.5 A.
It uses a 5 mm pitch.
The device has four positions.
The block is 11.3 mm long and 9 mm high.
