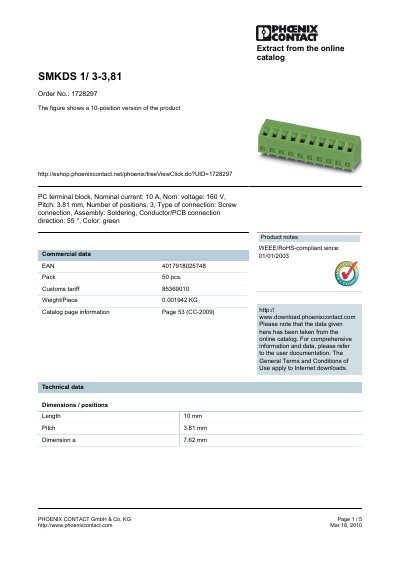

The SMKDS 1/3-3,81 is a 3‑position PC terminal block with a 3.81 mm pitch, designed for screw connection and optional soldering assembly. It is rated for 10 A nominal current and 160 V nominal voltage, with a maximum load current of 12 A.
The datasheet provides detailed mechanical dimensions, electrical ratings, tightening torque values, material specifications, certification approvals and a list of compatible accessories such as marker cards and screwdriver tools.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 3 |
| Type of connection | Screw connection |
| Length | 10 mm |
| Tightening torque (min) | 0.22 Nm |
| Tightening torque (max) | 0.25 Nm |
| Insulating material | Group I, PA (UL 94 V0) |
| Rated surge voltage | 2.5 kV |
The terminal block is rated for a nominal current of 10 A.
The pitch is 3.81 mm.
The minimum tightening torque is 0.22 Nm and the maximum is 0.25 Nm.
It is certified by CB, CCA, CSA, CUL, GOST, SEV and UL.
