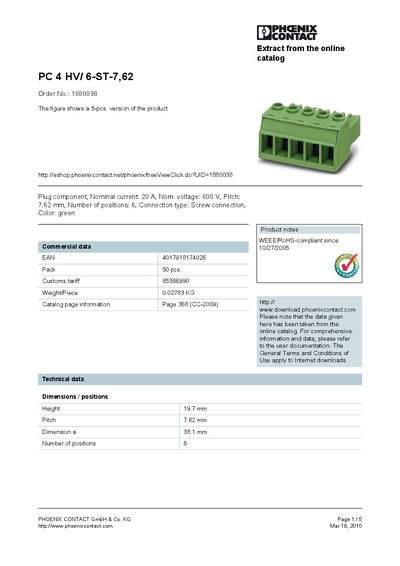

PHOENIX CONTACT PC 4 HV/ 6-ST-7,62 is a 6-position connector with a rated current of 20 A, rated voltage of 800 V, a M3 thread, a screw connection type, and green color
The PC 4 HV/6-ST-7,62 is a screw‑connection terminal block rated for 20 A and 800 V. It features a 7.62 mm pitch, six positions, and a compact height of 19.7 mm. The green‑colored block complies with RoHS and includes detailed tightening torque values.
The handbook lists accessories such as marker cards, screwdriver tools, and plug adapters, and provides certification information (CSA, CUL, GOST, UL). Commercial data, weight (0.02783 kg per piece), and ordering details are also included.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 800 V |
| Pitch | 7.62 mm |
| Number of positions | 6 |
| Connection type | Screw connection |
| Weight per piece | 0.02783 kg |
| Color | green |
| Tightening torque (min) | 0.5 Nm |
| Certifications | CSA, CUL, GOST, UL |
The terminal block is rated for a nominal current of 20 A.
The pitch of the terminal block is 7.62 mm.
It provides six positions for connections.
The product is certified by CSA, CUL, GOST, and UL.
