MCVR 1,5/ 3-ST-3,5 is a connector produced by Phoenix Contact. It has a rated current of 8 A and a rated voltage of 160 V. The connection method is screw connection.
The MCVR 1,5/3-ST-3,5 is a 3‑position screw‑connection terminal block from Phoenix Contact, rated for 8 A and 160 V, with a 3.5 mm pitch. It is designed for use with 1.5 mm² conductor cross‑section and features a compact height of 12.5 mm.

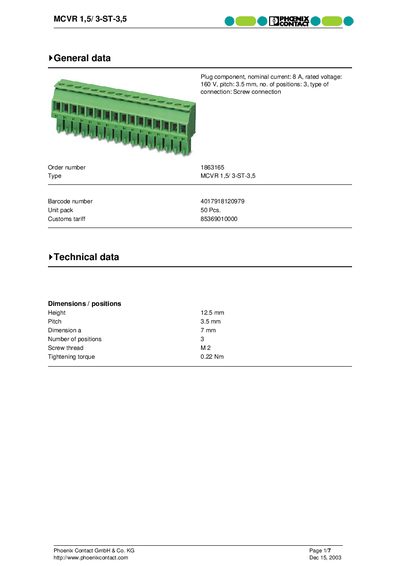

The handbook lists detailed technical data such as dimensions (height 12.5 mm, dimension a 7 mm), tightening torque (0.22 Nm), surge voltage ratings up to 2.5 kV, and provides part numbers for accessories like marker pens, marker cards, and a screwdriver. Ordering information, unit pack size (50 pcs), and Phoenix Contact contact details are also included.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Height | 12.5 mm |
| Dimension a | 7 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Order number | 1863165 |
| Unit pack | 50 pcs |
It is rated for 8 A.
