This is a PC terminal block produced by the German company PHOENIX CONTACT. The rated current is 24A, the rated voltage is 250V, the installation spacing is 5mm, and it can connect 3 wires. The connection method is screw connection. The color is green. It can be adjusted according to the needs of the connection quantity
The FRONT 2,5-H/SA 5/3 terminal block is a green, screw‑connection block with a 5 mm pitch and three positions. It is rated for a nominal current of 24 A and a nominal voltage of 250 V, and can be assembled by soldering. The product complies with CSA, CUL and UL certifications and is WEEE/RoHS‑compliant.

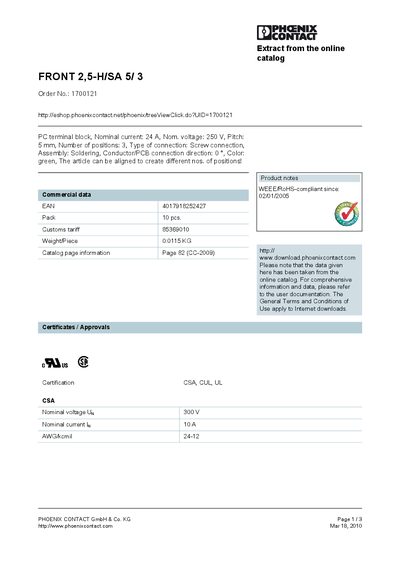

The handbook lists accessories such as end covers, pitch spacers, marker pens and cards, as well as tools like a screwdriver. Ordering details, including the order number 1700121, packaging (10 pcs per pack), weight (0.0115 kg each) and contact information for Phoenix Contact GmbH & Co. KG, are also provided.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Type of connection | Screw connection |
| Assembly method | Soldering |
| Color | green |
| Weight per piece | 0.0115 kg |
| Pack size | 10 pcs |
| Certifications | CSA, CUL, UL |
It is rated for a nominal current of 24 A and a nominal voltage of 250 V.
The block has three positions.
It uses a screw connection.
The order number is 1700121.
