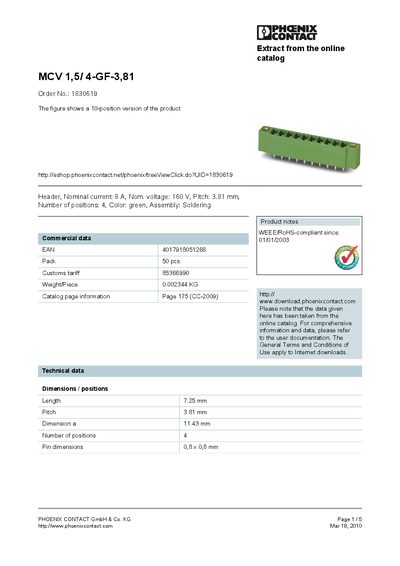

This is a datasheet for MCV 1,5/ 4-GF-3,81, a 4-pin connector with a rated current of 8 A and a rated voltage of 160 V. The pin dimensions are 0.8 x 0.8 mm, the hole diameter is 1.2 mm, the insulating material group is IIIa, and the rated surge voltage is 2.5 kV. The connection is in accordance with the EN-VDE standard.
The MCV 1,5/4-GF-3,81 is a 4‑position green terminal block with a 3.81 mm pitch, rated for 8 A and 160 V. The leaf‑let lists its mechanical dimensions, electrical ratings, material specifications, and compliance information, including weight, EAN and packaging details.
Additional pages describe compatible accessories such as marker cards and plug adapters, show drilling and solder‑pad geometry, and provide certification data (CB, CSA, CUL, GOST, UL, VDE‑PZI) and RoHS compliance dates. Contact information for Phoenix Contact Germany is also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 4 |
| Length | 7.25 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.002344 kg |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It has four positions.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
