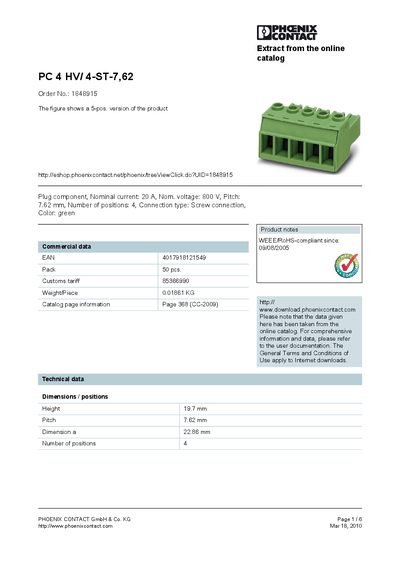

PC4 HV/4-ST-7,62 is a plug component from PHOENIX CONTACT with a nominal current of 20A, a rated voltage of 800V, a pitch of 7.62mm, a screw connection and a green color.
The PC 4 HV/ 4-ST-7,62 is a 4‑position screw‑type terminal block rated for 20 A and 800 V. It features a 7.62 mm pitch, green housing, and complies with WEEE/RoHS regulations.
The handbook provides dimensions, torque specifications, conductor cross‑section ranges, certification information (CSA, CUL, UL), and a list of compatible accessories such as marker pens, plug adapters and tools.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 800 V |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.01861 kg |
| WEEE/RoHS compliance date | 09/08/2005 |
The terminal block is rated for a nominal current of 20 A.
The pitch between terminals is 7.62 mm.
It has four positions.
It is certified by CSA, CUL and UL.
