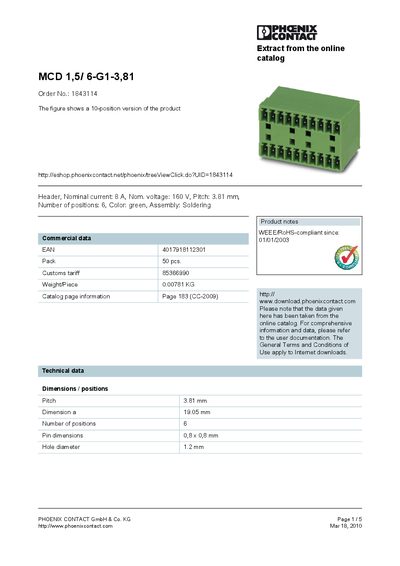

This document describes the features and characteristics of the MCD 1.5/6-G1-3.81 product manufactured by PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, color, and assembly information.
The MCD 1,5/6-G1-3,81 is a 6‑position green terminal block with a 3.81 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. It is supplied in packs of 50 pieces and complies with RoHS and WEEE regulations.
The leaflet provides detailed dimensions, pin sizes, weight, and a list of compatible accessories such as marker cards, plug adapters, and various plug components. Additional product information and drawings are available from Phoenix Contact’s website.
| Nominal current | 8 A |
|---|---|
| Pitch | 3.81 mm |
| Number of positions | 6 |
| Color | green |
| Assembly | Soldering |
| Weight per piece | 0.00781 kg |
| EAN | 4017918112301 |
| Pack size | 50 pcs |
| Pin dimensions | 0.8 × 0.8 mm |
| Overall dimension a | 19.05 mm |
The terminal block is rated for a nominal current of 8 A.
The pitch of the MCD 1,5/6-G1-3,81 is 3.81 mm.
It has six positions.
The Accessories section lists compatible items such as marker cards, plug adapters, and various plug components.
