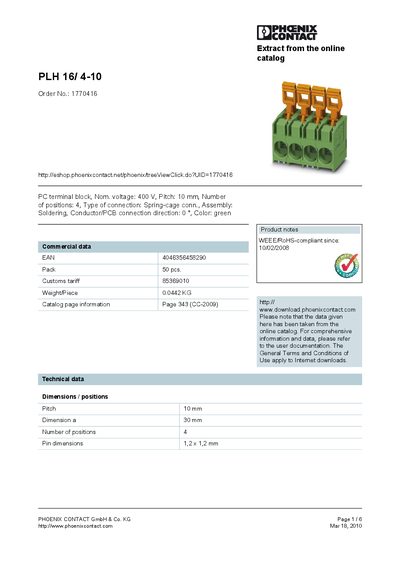

This document provides detailed information about the PC terminal block PLH 16/4-10 from PHOENIX CONTACT GmbH & Co. KG, including rated voltage, dimensions, and connection type.
The PLH 16/4-10 is a spring‑cage terminal block from Phoenix Contact, designed for a nominal voltage of 400 V and a 10 mm pitch. It is supplied in packs of 50 pieces and complies with WEEE/RoHS regulations.
The leaflet lists technical data such as pitch, number of positions, pin dimensions, rated surge voltages, and conductor cross‑section ranges, and includes drawing references for drilling plans and functional layouts. For detailed installation instructions, refer to the full user documentation linked on the Phoenix Contact website.
| Pitch | 10 mm |
|---|---|
| Number of positions | 4 |
| Weight per piece | 0.0442 KG |
| Pack size | 50 pcs |
| Pin dimensions | 1.2 × 1.2 mm |
| Dimension a | 30 mm |
The pitch is 10 mm.
It has 4 positions.
Each piece weighs 0.0442 kg.
