FRONT-MSTB 2,5/ 5-STF-5,08 is a connector product launched by PHOENIX CONTACT. Its rated current is 12A, rated voltage is 250V, pitch is 5.08mm, connection type is screw connection, and color is green.
The FRONT-MSTB 2,5/5-STF-5,08 is a 5‑position screw‑connection terminal block designed for DIN‑rail mounting. It is intended for wiring and terminal connections in industrial control panels and offers a 5.08 mm pitch with a green housing.

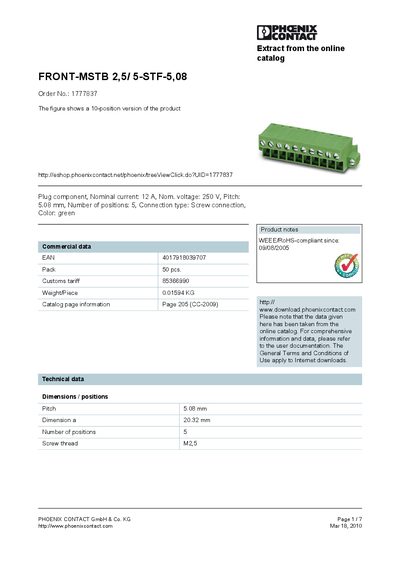

The handbook lists the product’s electrical ratings, mechanical dimensions, tightening torque, certifications, and a range of accessories such as bridges, marker cards, and removal aids. It also includes wiring diagrams and a dimensioned drawing for installation reference.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.01594 kg |
| WEEE/RoHS compliance date | 09/08/2005 |
The terminal block is rated for a nominal current of 12 A.
The recommended tightening torque is between 0.5 Nm (minimum) and 0.6 Nm (maximum).
The contact pitch is 5.08 mm.
