SPTA 1/ 5-3,5 is a PC terminal block from PHOENIX CONTACT with a nominal current of 9 A, a nominal voltage of 160 V, a pitch of 3.5 mm, 5 positions, a spring-cage connection, a soldering assembly, a 45 ° conductor/PCB connection direction and green color
The SPTA 1/5-3.5 is a 5‑position spring‑cage terminal block with a 3.5 mm pitch, designed for soldered PCB connections. It is rated for 9 A nominal current and 160 V nominal voltage, and complies with EN‑VDE and UL standards.

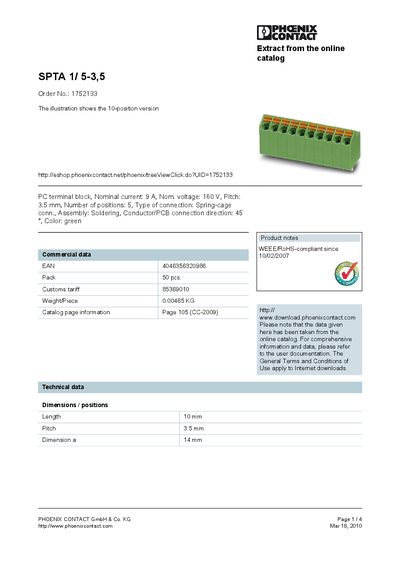

The handbook provides detailed dimensions, electrical ratings, material specifications, and certification information such as CUL and UL approvals. It also includes a drilling plan, solder‑pad geometry, and contact details for Phoenix Contact.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Connection type | Spring‑cage |
| Assembly method | Soldering |
The nominal current is 9 A.
It has 5 positions.
The pitch is 3.5 mm.
It is rated for 160 V nominal voltage, with a rated voltage of 200 V (III/2) and 400 V (II/2).
