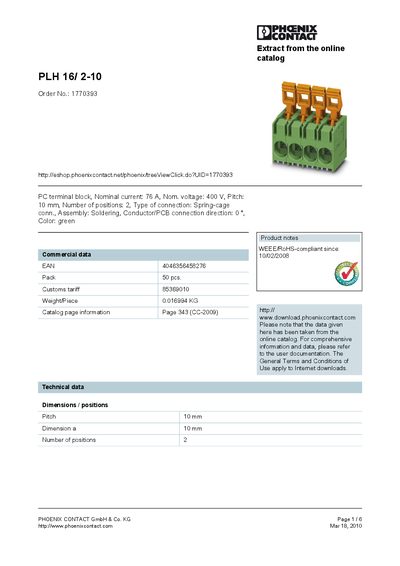

This is a PC terminal block from PHOENIX CONTACT, model PLH 16/ 2-10, rated current 76 A, rated voltage 400 V, pitch 10 mm, number of positions 2, connection type spring-cage conn., assembly soldering, conductor/PCB connection direction 0 °, color green.
The PLH 16/2-10 is a spring‑cage terminal block from Phoenix Contact with a nominal current of 76 A and a nominal voltage of 400 V. It features a 10 mm pitch, green housing, and is RoHS‑compliant.
The leaflet lists commercial data, technical parameters, pin dimensions, and includes functional and dimensioned drawings. Contact information for Phoenix Contact and ordering details are also provided.
| Nominal current | 76 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 10 mm |
| Number of positions | 2 |
| Color | green |
| Pin dimensions | 1.2 × 1.2 mm |
The nominal current is 76 A.
The pitch is 10 mm.
It has 2 positions.
The nominal voltage rating is 400 V.
