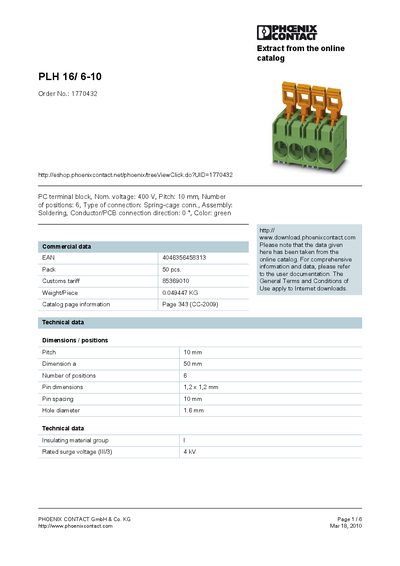

This is a PDF document about PHOENIX CONTACT GmbH & Co. KG PLH 16/ 6-10. It mainly introduces the product's specifications, such as rated voltage, pitch, pin dimensions, insulating material, etc.
The PLH 16/6-10 is a spring‑cage terminal block from Phoenix Contact with a nominal voltage of 400 V and a 10 mm pitch. It is supplied in a green housing and is intended for soldered PCB assembly.
The handbook provides detailed technical data, including dimensions, electrical ratings, connection data, and several mechanical drawings such as drilling plans, functional and dimensioned drawings. Contact information for Phoenix Contact is also included.
| Pitch | 10 mm |
|---|---|
| Number of positions | 6 |
| Pin dimensions | 1.2 x 1.2 mm |
| Hole diameter | 1.6 mm |
| Rated surge voltage (III/3) | 4 kV |
The pitch is 10 mm.
It has 6 positions.
The rated surge voltage (III/3) is 4 kV.
The hole diameter is 1.6 mm.
