MC 1,5/10-G-3,81 THT is a connector product produced by PHOENIX CONTACT. Its rated current is 8 A, rated voltage is 160 V, pitch is 3.81 mm, and it has 10 terminals. It is black and can be assembled in SMD/THT/THR.
The MC 1,5/10-G-3,81 THT is a 10‑position terminal block with a 3.81 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. It is supplied in a black housing and is available as a through‑hole (THT) component.

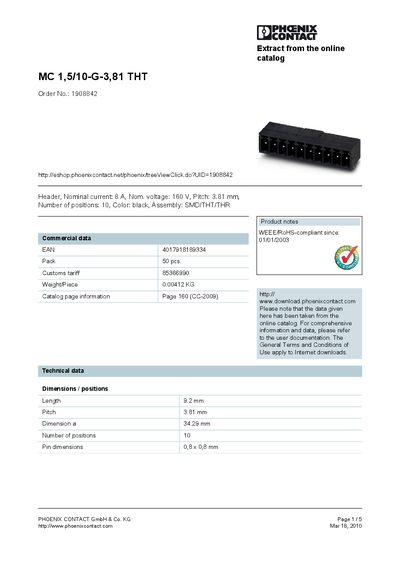

The leaflet lists technical data such as overall length (9.2 mm), dimension a (34.29 mm), pin dimensions (0.8 × 0.8 mm), weight per piece (0.00412 kg), and packaging (50 pcs per pack). Certifications, WEEE/RoHS compliance, and contact information for Phoenix Contact are also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 10 |
| Weight per piece | 0.00412 kg |
| Length | 9.2 mm |
| Dimension a | 34.29 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Color | black |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It provides 10 positions for connections.
The pitch of the terminals is 3.81 mm.
