The 0308 series connector is designed based on the IEC 60130-9 standard, with an IP 68 waterproof and dustproof rating, and has a screw cap and welding terminals.

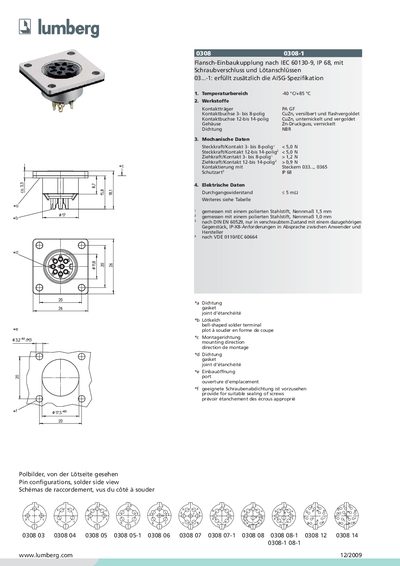

This handbook describes the 0308 flange‑mounted circular connector, covering its temperature range, material construction, mechanical characteristics and electrical performance. It also lists compliance with IEC 60130‑9, AISG specifications and IP68 protection.
Key data include contact materials for 3‑8 and 12‑14 pole versions, insertion and withdrawal forces, contact resistance, and packaging details. The document is intended for engineers and installers needing technical reference for this connector. This manual is written in German.
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Housing material | Zn die‑cast, nickel‑plated |
| Gasket material | NBR |
| Contact material (3‑8 poles) | CuZn, silvered and flash‑gilded |
| Contact material (12‑14 poles) | CuZn, pre‑nickeled and gilded |
| Insertion force (3‑8 poles) | <5.0 N |
| Withdrawal force (3‑8 poles) | >1.2 N |
| IP protection rating | IP68 |
| Contact resistance | <5 mΩ |
The connector can be used from –40 °C up to +85 °C.
It is rated IP68, suitable for dust‑tight and water‑resistant applications.
The insertion force is less than 5 N.
The housing is made of zinc die‑cast and is nickel‑plated.
