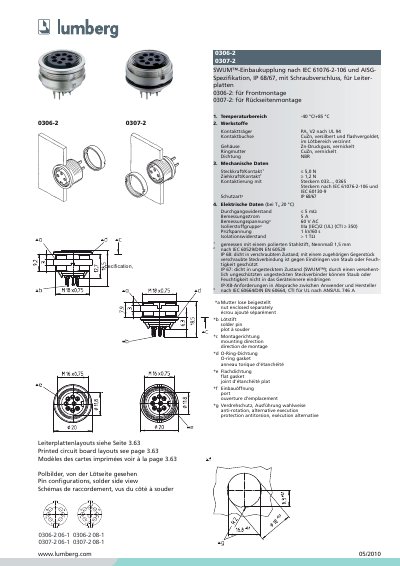

This document describes Lumberg's SWUM™-Einbaukupplung product, which complies with IEC 61076-2-106 and AISG specifications, has an IP 68/67 protection rating, and is suitable for front and rear mounting. The temperature range is -40°C to +85°C.
The SWUM™ circular connectors (0306-2 for front mounting, 0307-2 for rear mounting) comply with IEC 61076‑2‑106 and AISG specifications. They are designed for PCB integration and feature a threaded locking mechanism that provides IP68 protection when mated and IP67 when unmated.
Key mechanical and electrical characteristics include an insertion force of ≤5.0 N, a withdrawal force of ≥1.2 N, contact resistance ≤5 mΩ, a rated current of 5 A, and a rated voltage of 360 V AC. The connectors are built from PA/V2 material for the contact carrier, CuZn contacts, and a zinc‑die‑cast housing with nickel plating, and they meet a test voltage of 1 kV for 60 s with insulation resistance >1 TΩ. This manual is written in German.
| Temperature range | -40 °C to +85 °C |
|---|---|
| Insertion force | ≤5.0 N |
| Withdrawal force | ≥1.2 N |
| Contact resistance | ≤5 mΩ |
| Rated current | 5 A |
| Rated voltage | 360 V AC |
| Insulation resistance | >1 TΩ |
| Test voltage | 1 kV / 60 s |
The insertion force is ≤5.0 N.
They are rated for a continuous current of 5 A.
The contact resistance must not exceed 5 mΩ.
