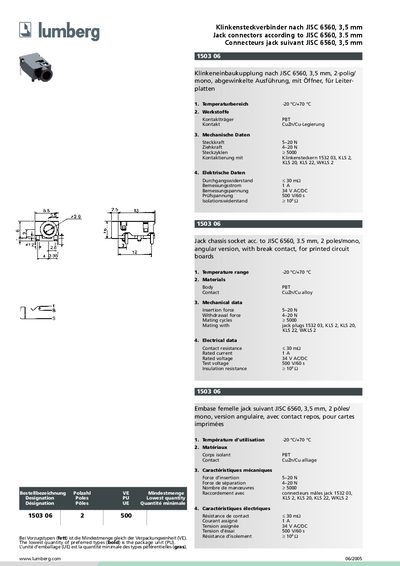

This document describes the features and characteristics of the Klinkensteckverbinder nach JISC 6560, 3.5 mm Jack connectors produced by Lumberg, including temperature range, materials, mechanical data, and electrical data.
The Lumberg 1503 06 is a 3.5 mm jack connector compliant with JISC 6560. It is designed for printed‑circuit‑board mounting and is available in 2‑pole mono and angled versions. The connector body is made of PBT and the contacts are CuZn/Cu alloy.
Key parameters include a temperature range of –20 °C to +70 °C, insertion force of 5‑20 N, withdrawal force of 420 N, and a rated current of 1 A at 34 V AC/DC. Electrical performance features a contact resistance of ≤ 30 mΩ, test voltage of 500 V for 60 s, and insulation resistance of 10⁸ Ω. The device is rated for at least 5 000 mating cycles. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Body material | PBT |
| Contact material | CuZn/Cu alloy |
| Insertion force | 5‑20 N |
| Withdrawal force | 420 N |
| Mating cycles | ≥ 5 000 |
| Contact resistance | ≤ 30 mΩ |
| Rated current | 1 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
| Insulation resistance | 10⁸ Ω |
It operates from –20 °C up to +70 °C.
The connector is rated for 1 A and 34 V AC/DC.
It is specified for at least 5 000 mating cycles.
The contact resistance must be ≤ 30 mΩ.
