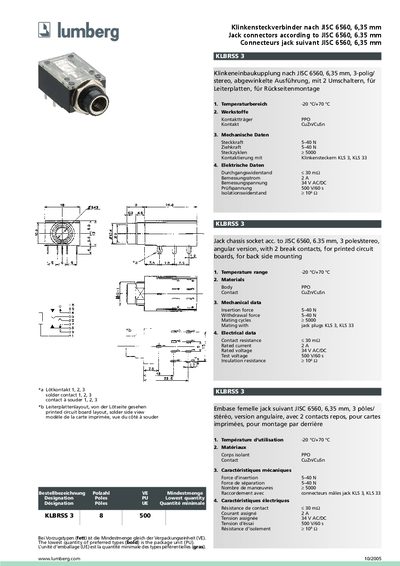

This data sheet provides basic information about KLBRSS 3 connector, including name, poles, package unit, lowest quantity, etc.
The KLBRSS 3 is a 3‑pole angled jack connector compliant with JISC 6560, designed for back‑side mounting on printed circuit boards. It is offered in a preferred type with packaging unit details.
The leaflet lists its temperature range, material composition, mechanical forces, mating cycles, and electrical ratings such as contact resistance, rated current, voltage, test voltage, and insulation resistance.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Body material | PPO |
| Contact material | CuZn/CuSn |
| Insertion force | 5‑40 N |
| Withdrawal force | 5‑40 N |
| Mating cycles | ≥ 2500 |
| Contact resistance | < 30 mΩ |
| Rated current | 2 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
It operates from –20 °C to +70 °C.
The connector is rated for 2 A and 34 V AC/DC.
It is specified for at least 2 500 mating cycles.
The insertion force is between 5 N and 40 N.
