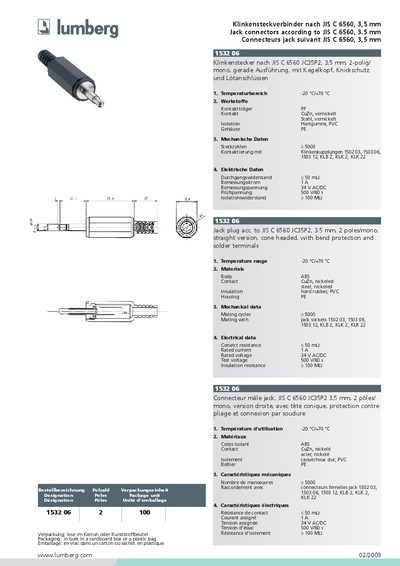

This document describes Lumberg's Klinkenstecker product, including its design features, materials, mechanical data, and electrical data.
The Lumberg 1532 06 is a 3.5 mm jack connector compliant with JIS C 6560. It is offered in bulk packaging (cardboard box or plastic bag) and is suitable for temperatures from –20 °C to +70 °C.
Key specifications include a rated current of 1 A, rated voltage of 34 V AC/DC, contact resistance under 50 mΩ, insulation resistance of 100 MΩ, and a mechanical life of 25 000 mating cycles.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Rated current | 1 A |
| Rated voltage | 34 V AC/DC |
| Insulation resistance | 100 MΩ |
| Mating cycles | 25 000 |
| Packaging type | Bulk in cardboard box or plastic bag |
It can be used from –20 °C up to +70 °C.
The connector is rated for a current of 1 A.
It is specified for 25 000 mating cycles.
