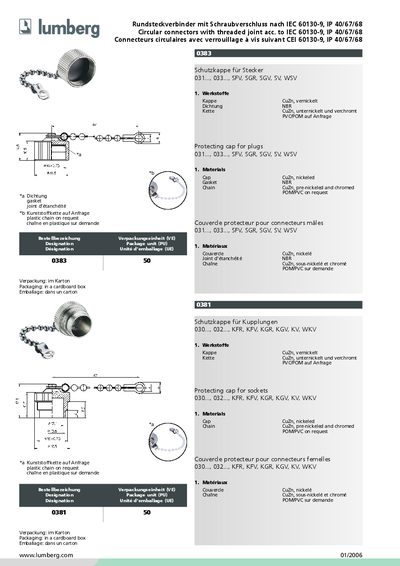

This document describes the protective caps for plugs and sockets produced by Lumberg, including the materials used and their features.
The leaflet presents Lumberg's circular connectors with a threaded joint that meet IEC 60130-9 standards and provide IP40, IP67 and IP68 protection levels. It lists the materials used for the caps, gaskets and chains, and notes optional POM/PVC components on request.
Packaging is supplied in cardboard boxes, and the document provides ordering designations for various connector series. Contact information and the company website are included for further reference. This manual is written in German.
| IEC standard | IEC 60130-9 |
|---|---|
| IP rating | IP40/67/68 |
| Cap material | CuZn, nickeled |
| Gasket material | NBR |
| Chain material | CuZn, pre‑nickeled and chromed |
| Thread size | M16 x0.75 |
| Packaging | Cardboard box |
They are rated IP40, IP67 and IP68.
They are supplied in a cardboard box.
Additional information is available on the Lumberg website at www.lumberg.com.
