0314-2 is a product of the SWUM™ series. This series of products are installed in the device interior, with IP68/67 protection grade, rated current 5A, rated voltage 60V AC, working temperature range -40~85℃.

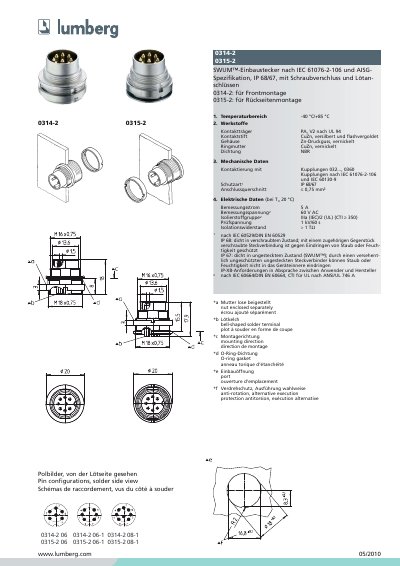

The SWUM™ integrated plug is designed according to IEC 61076‑2‑106 and AISG specifications and offers IP68 protection when screwed together and IP67 when unmated. Two variants exist: 0314‑2 for front mounting and 0315‑2 for rear mounting, with optional solder terminals.
Key data include a temperature range of –40 °C to +85 °C, rated current of 5 A, rated voltage of 60 V AC, insulation resistance > 1 TΩ, test voltage 1 kV/60 s, and a wire cross‑section up to 0.75 mm². Materials are PA V2 (UL‑94) for the body, Zn die‑cast housing, CuZn contacts silvered and flash‑gilded, and NBR sealing rings. This manual is written in German.
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Rated current | 5 A |
| Insulation resistance | > 1 TΩ |
| Test voltage | 1 kV/60 s |
| IP protection | IP68 (locked) / IP67 (unmated) |
| Maximum wire cross‑section | ≤ 0.75 mm² |
| Contact material | CuZn, silvered and flash‑gilded |
| Body material | Zn die‑cast, nickeled |
It operates from –40 °C to +85 °C.
The connector is rated for 5 A and 60 V AC.
It provides IP68 when the threaded joint is locked and IP67 when the connector is unmated.
Model 0314‑2 is for front mounting, while 0315‑2 is for rear mounting.
