1501 03 is lumberg 3 pins jack chassis socket, with rated current 0.5A, rated voltage 34V AC/DC, mating cycles ≥ 5000 times, operating temperature -20 °C/+70 °C, contact material CuSn, outer case material PA GF.

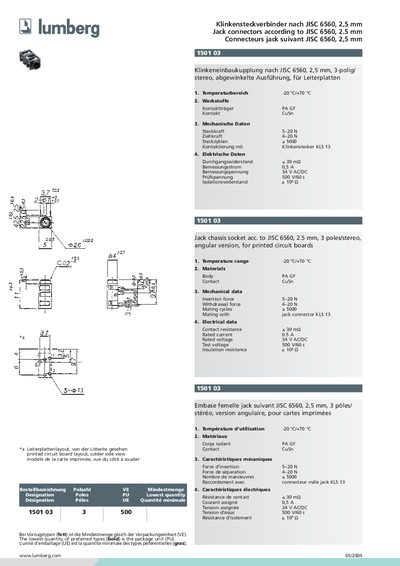

The Lumberg 1501 03 jack connector complies with JISC 6560 (2.5 mm, 3‑pole stereo) and is offered in an angular version for printed‑circuit‑board mounting. The document lists mechanical data such as insertion and withdrawal forces, mating cycles, and material information.
Key electrical data include a temperature operating range of –20 °C to +70 °C, rated voltage of 34 V AC/DC, test voltage of 500 V for 60 s, insulation resistance of 5 000 Ω, and contact resistance specifications. Mechanical forces are 5‑20 N for insertion and 4‑20 N for withdrawal.
| Temperature range | -20 °C / +70 °C |
|---|---|
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V / 60 s |
The connector operates from –20 °C to +70 °C.
The rated voltage is 34 V AC/DC and the test voltage is 500 V for 60 seconds.
It follows JISC 6560, 2.5 mm, 3‑pole stereo, angular version for PCBs.
