5.0 mm terminal blocks, with wire protection, solder type, single row, upright version, with holes for test clips.

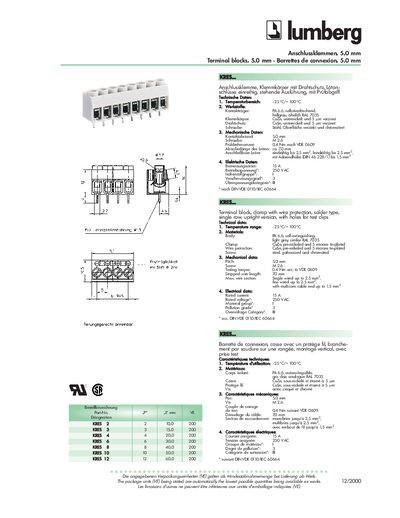

This leaflet describes the Lumberg KRES series of 5.0 mm pitch connection terminals. It lists the mechanical dimensions, material composition, and the electrical ratings required for proper installation.
Key information includes temperature range, current and voltage limits, wire size compatibility, and compliance with DIN VDE 0110/IEC 60664 standards. This manual is written in German.
| Operating temperature range | -25 °C to +100 °C |
|---|---|
| Maximum current | 15 A |
| Rated voltage | 250 VAC |
| Contact material | CuZn pre‑nickel plated, 5 µm |
| Wire termination material | CuSn pre‑nickel plated, 5 µm |
| Pitch | 5.0 mm |
| Screw size | M2.6 |
| Insulation material | PA 66 |
| Installation torque | 0.4 Nm (VDE 0609) |
The connector can be used from –25 °C up to +100 °C.
The KRES connector is rated for a continuous current of 15 A.
It is rated for 250 VAC.
A torque of 0.4 Nm according to VDE 0609 is recommended.
